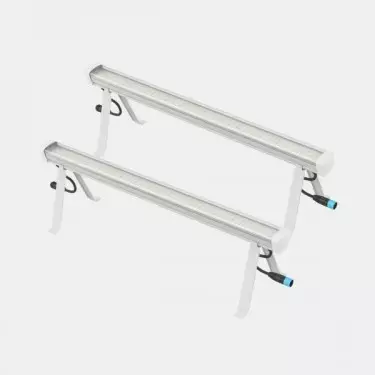

Solux Under Canopy 120W LED

Description

Solux Under Canopy LED 120W: Efficient lighting for indoor grows

The Solux Under Canopy LED 120W is a lighting solution specifically designed to optimize plant growth in indoor cultivation, providing uniform light distribution beneath the canopy. Its compact and robust (IP65) design allows for easy installation and efficient performance in any grow space.

A system designed for horticultural environments with high energy efficiency and easy installation. It features a robust and versatile design to optimize lighting in controlled spaces and specific conditions.

Powerful Lighting with Full Spectrum

This lighting system features full-spectrum or customized LED diodes, adapting to the specific needs of each crop. With a power of 120W and an efficiency of 2.7 µmol/J, it provides a PPF output of 324 µmol/s, maximizing plant development and productivity.

Versatile and durable design

Thanks to its compact structure, the Under Canopy LED 120W adapts to different growing environments, ensuring optimal lighting without taking up too much space. In addition, its IP65 protection makes it water and dust resistant, guaranteeing greater durability and stable performance over time.

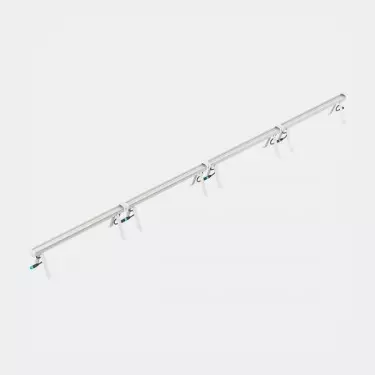

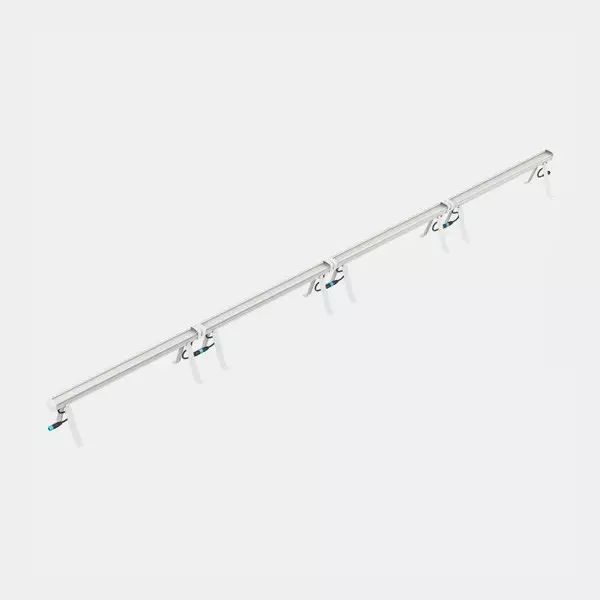

Easy installation and daisy chaining

Designed for ease of use, this LED system allows connecting up to 7 units at 120V, 15 units at 240V, and 17 units at 277V, optimizing outlet usage and simplifying installation in large-scale grows. Its passive cooling system without fans contributes to quiet, low-maintenance operation.

The Solux Under Canopy LED 120W is the ideal choice for growers looking to improve light penetration and optimize plant yield without complicated installation.

Technical specifications

• Power: 120W
• Efficiency: 2.7 µmol/J
• PPF: 324 µmol/s
• Full spectrum
• Input Voltage: 100-240 VAC / 100-277 VAC, 50-60 Hz
• Mounting Height: 45 cm from lamp to canopy
• Thermal Management: Passive (no fans)
• Dimensions: 1148 x 82 x 72 mm
• Power Factor: >0.9
• Coverage: 0.9 m x 1.2 m
• Recommended Height: 45 cm above the canopy
• Protection: IP65 (dust and water resistant)
• Daisy Chain: Up to 17 units at 277V, 15 units at 240V, and 7 units at 120V

Design and materials

• Aluminum housing for high durability and efficient thermal dissipation.
• High-transmission polycarbonate optics.

Operating conditions:

• Operating Temperature: 0°C to 40°C (32°F to 104°F), with a maximum relative humidity of 95%.
• Storage Temperature: -40°C to 70°C (-40°F to 158°F), with a maximum relative humidity of 85%.

Luminous efficiency (PPFD test at 45 cm)

• Average: 175 µmol/m²/s
• Maximum: 347 µmol/m²/s
• Minimum: 82 µmol/m²/s

Contents of Solux Under Canopy LED 120W

• 2 floor mounting brackets, 25 cm high.
• Interconnection clips.
• Standard EU plug.
