GB Lighting 720W PRO MAX Dimmable LED System

GB Lighting 720W PRO MAX Dimmable LED System: adjustable power, superior results

The GB Lighting 720W PRO MAX Dimmable LED System has been designed to offer optimal performance in high-level indoor cultivation. Thanks to its full spectrum reinforced with white and red, this system provides precise and uniform light that promotes both plant growth and flowering, ensuring abundant harvests and excellent organoleptic quality.

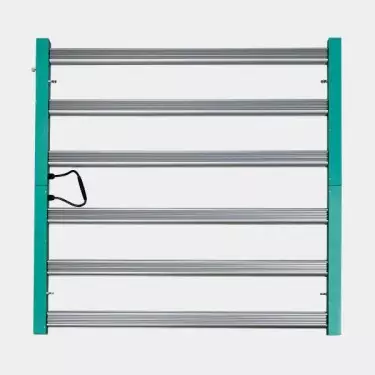

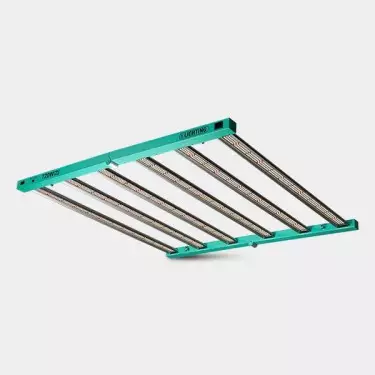

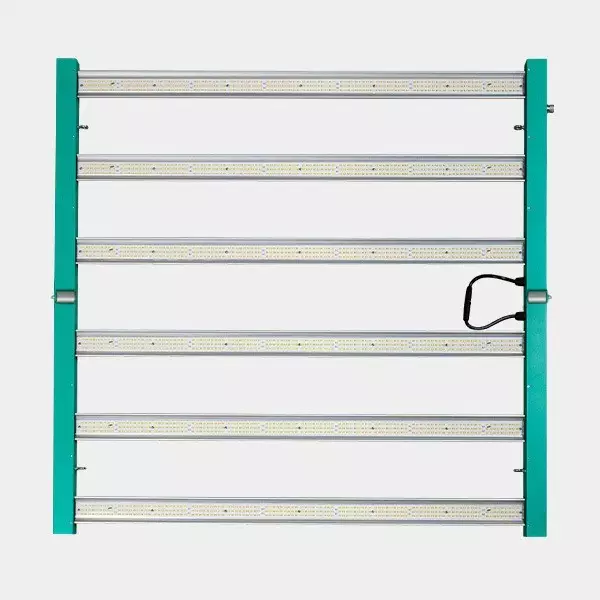

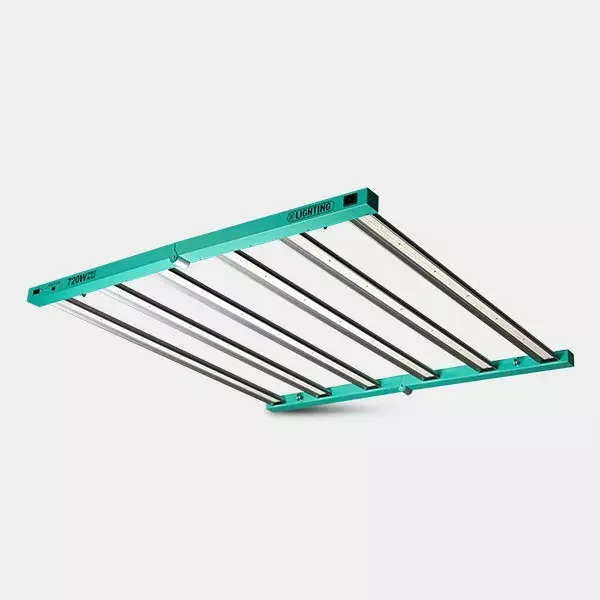

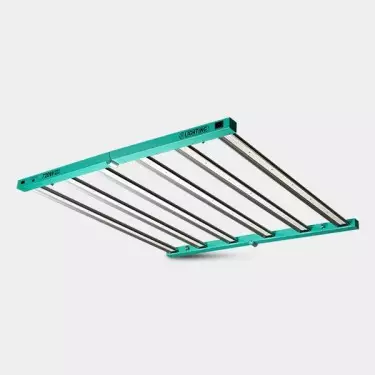

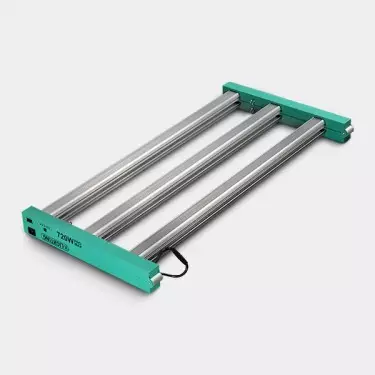

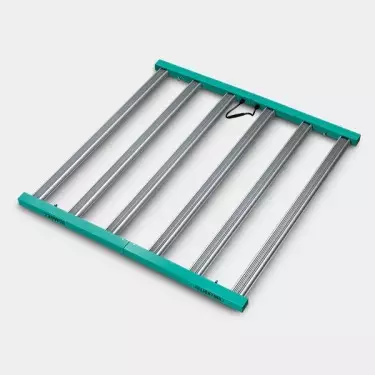

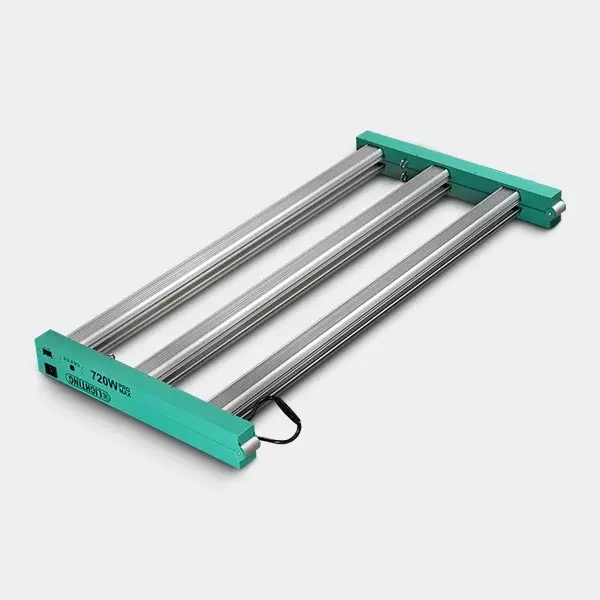

With a robust design of 6 LED bars and state-of-the-art components, this system allows for enveloping and professional lighting, simulating ideal natural light conditions to maximize plant development.

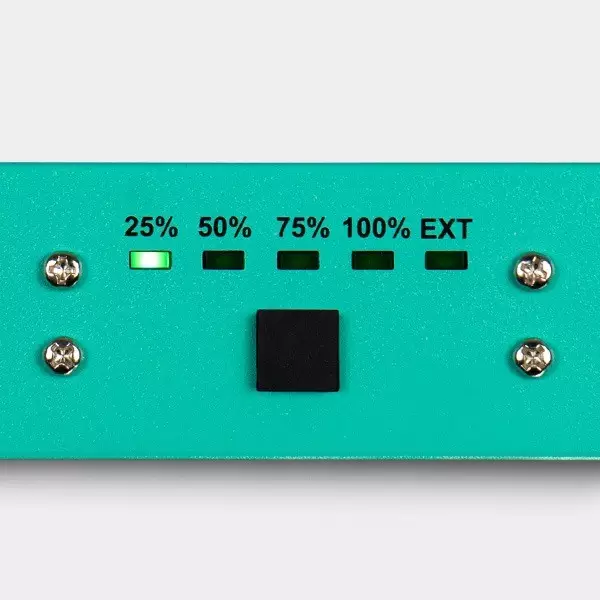

One of the main advantages of the PRO MAX 720W is its power dimmable to 25%, 50%, 75%, or 100%, allowing the grower to adapt the light intensity according to the crop's development phase or the type of genetics cultivated. At its maximum power, it reaches a PPFD of 1876 µmol/s, ideal for demanding crops during the flowering stage, ensuring powerful and effective light penetration.

Robust and silent design with passive thermal management

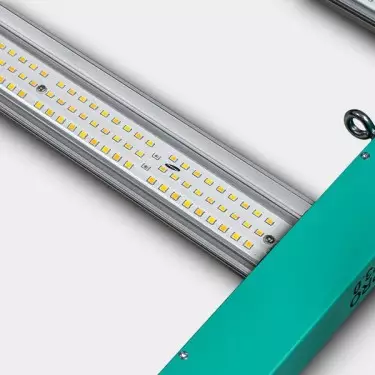

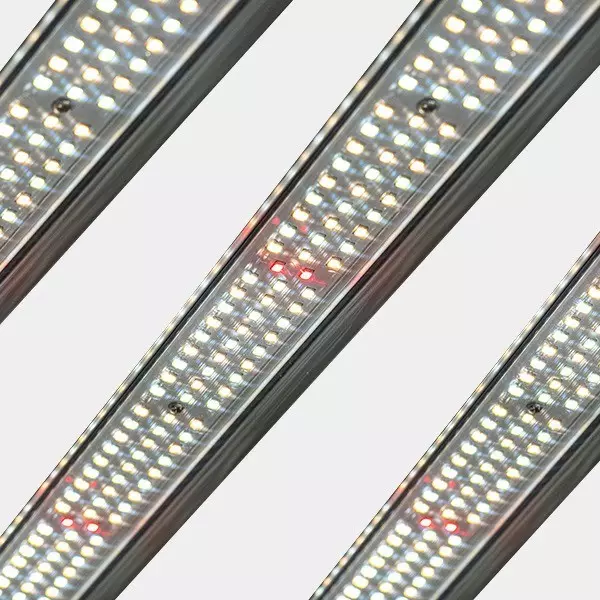

The system consists of 6 LED bars, each equipped with 336 diodes, totaling 2016 Samsung LM281B chips, in a combination of warm whites (3000K), cool whites (5000K), and deep reds (660nm), which compose a complete spectrum optimized for professional horticulture.

The 720W PRO MAX Dimmable LED System stands out for its passive thermal management, eliminating the need for fans and ensuring silent, durable, and maintenance-free operation. Its open-structure design promotes heat dissipation and allows for installation from 15.2 cm above the plant canopy, optimizing the distance for homogeneous distribution.

Its integrated driver facilitates direct installation into the electrical system, with an input voltage between 120 and 240V, and a high power factor (>90%), which guarantees energy efficiency and operational stability. Additionally, it has a color rendering index (CRI) of 80Ra, offering a true perception of plant color and facilitating visual inspection throughout the cultivation cycle.

Technical Specifications of the GB Lighting 720W PRO MAX Dimmable LED System

• Power: 720W (dimmable to 25%, 50%, 75%, 100%)
• PPFD: 1876 µmol/s
• Efficiency: 2.6 µmol/J
• Spectrum: Full + White + Red
• Number of bars: 6
• Diodes: 2016 (336 per bar)
• Chips: Samsung LM281B (3000K / 5000K) + deep red 660nm
• Input Voltage: 120-240V
• Recommended Mounting Height: ≥15.2 cm above the canopy
• Thermal Management: Passive (fanless)
• Driver: Integrated
• Reflection Angle: 120°
• Color Rendering Index (CRI): 80Ra
• Power Factor: >90%
• Operating Ambient Temperature: -25°C to 40°C

What the 720W PRO MAX Dimmable LED System contains

• 1 LED structure with 6 bars and integrated driver
• Plug & Play wiring
• Mounting brackets
• Installation and safety manual
• Includes 4 pulleys for fastening.
