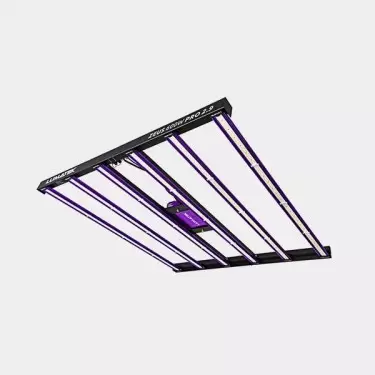

Zeus 600w Pro 2.9 Lumatek

The Zeus 600W Pro 2.9 Lumatek lighting system is the final solution for demanding growers seeking for large yields with low consumption and minimum heat emission within the indoor grow area.

This electronic LED device has 6 100W LED light bars that guarantee optimum results during the growth and flowering phases. Its full spectrum aspect places it on the cannabis lighting vanguard.

Zeus 600W Pro 2.9 Lumatek, High Performance LED Device

This dimmable lighting system features the latest market technology, capable of producing high PPF levels of up to 1770 μmol/s and with  2.9 μmol/J efficiency. This lighting system can increase the yield/per kWh while reducing energy consumption by up to 40%.

With an average rated life of up to 60000 hours, this device requires way less maintenance than other indoor lighting systems due to its Clear Glue LED bars, which promotes a 99% of lighting transmission without any light loss. They are also very resistant to corrosion and quite waterproofed.

The light emitted by this device increases the yield while boosting terpenes and cannabinoids. It can cover an area of 1.4 x 1.4 m, which makes it a great option for large grow tents or rooms. Even lighting distribution is guaranteed thanks to its high efficiency light diodes, such as Lumileds and Osram.

Maximum efficiency and low heat generation

One of the main novelties included in this LED lamp is that it includes an intelligent controller capable of increasing or reducing the power in order to match it with the installed bars. If the six of them aren’t installed, the driver will get enough energy to supply only for the connected ones; therefore, if only 3 bars are installed, the device will use 300W of power supply. It also features short circuit protection against overheating, low or high sudden voltages  and possible short circuits.

This LED lighting system is intended for indoor grow areas with controlled climates and humid areas without condensation and with hygrometric values between 20 and 90%. Not to be installed in wet environments or out in the open air.

Its functioning environmental temperature ranges between -20 and 40 ºC but its optimum working temperature oscillates between 20-30 ºC. It is CE certified and complies with all standards tests associated with LVD and EMC.

How to install the Zeus 600W Pro 2.9 Lumatek Lighting System

• First of all, attach frames A and B to the mount. Take into account the direction in which the installation is taking place as the controller has to be on top of the mount.
• Afterwards, connect the LED bars to frames A and B.
• Fix the LED controller to the mount using two included screws.
• In order to connect the outlet of the controller to the regulator, you have to make sure that the male and female connectors are properly aligned.
• Once everything is properly assembled, proceed to attach the hooks and hang the device in the correct position and height.
• To connect the external lighting controller or the manual dimmer, you need to introduce the cable to the SIGNAL IN port.
• Do not handle the device while it is plugged to the power source. Maintenance has to be performed while unplugged.
• Do not clean the lighting system with abrasive detergents or aggressive substances. Use a damp or dry cloth to remove dust or accumulated dirt.

Zeus 600W Pro 2.9 Lumatek LED lighting system technical specifications:

• Weight: 13.5 kg
• Size: 118.2 x 109.1 x 8.2 cm
• Spectrum: Full spectrum
• Input power: 620W
• Input volts: 220-240V - 50/60 Hz
• Input current 230V: 2.8A and a maximum of 3.2A.
• Power factor: > 0.95
• Efficiency: 2.9 μmol/J
• PPF: 1770 μmol/s
• Covered area: 1.4 x 1.4 m
• LED types: High Spec LUMILEDS (W) and Osram ® LED.
• Average rated life: 60.000 hours ( approximately)
• Functioning temperature: 0-40 ºC.
• Beam angle: 120 º
• Humidity working ranges: 20% - 90%
• Waterproof: IP65
• Dimmer and external controller: 0-10V

What does the Zeus 600W Pro 2.9 LED lighting system include:

• Zeus 600W lighting system (formed by two LED frames, a support frame, 6 LED bar and a LED controller with connecting cables.
• 0 - 10 V dimmer that connect to the B LED frame
• 2 metal hooks
• User's manual
