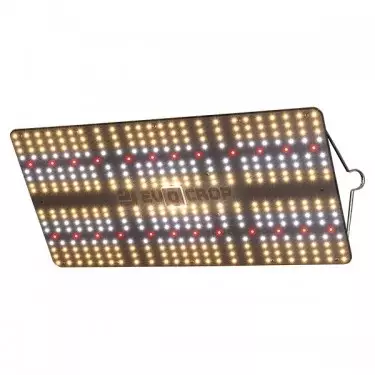

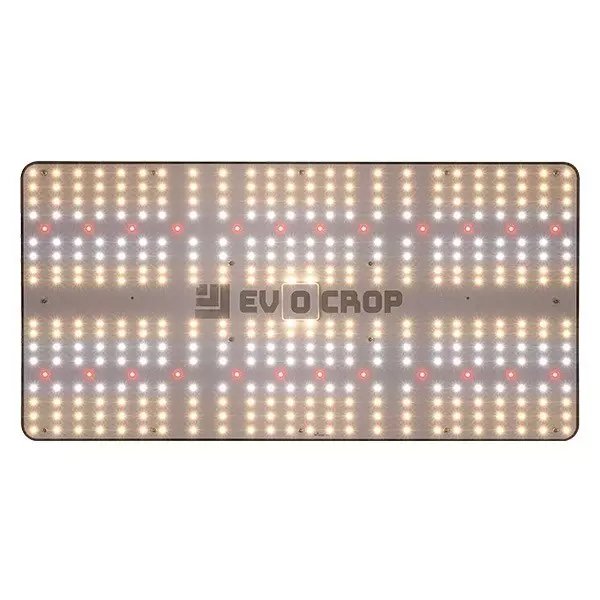

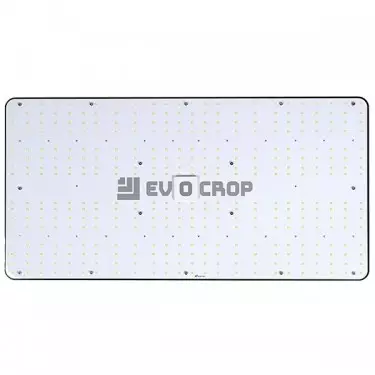

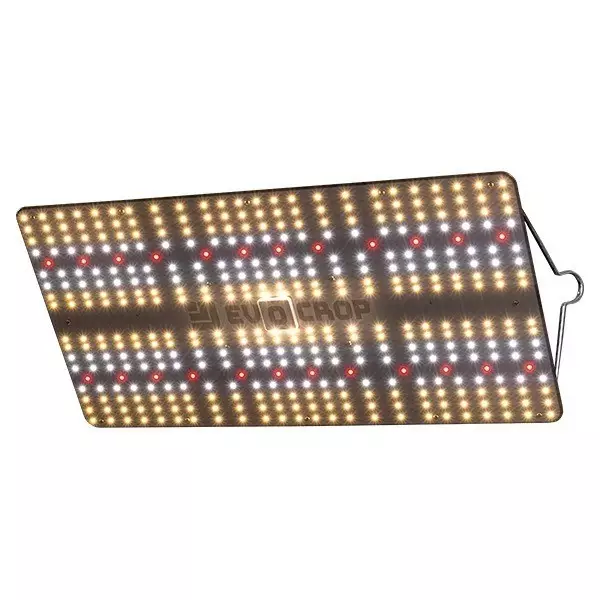

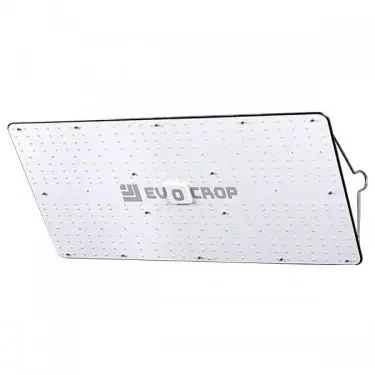

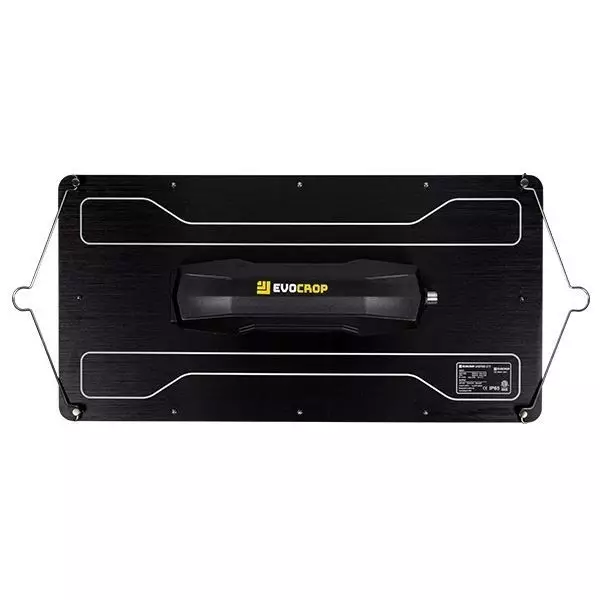

Wallace V1 EVO 240W Dimmable LED Panel

Description

A compact, potent and efficient panel

The Wallace V1 EVO 240W Dimmable LED Panel is an excellent choice for those looking for an efficient lighting system in a 80 x 80 cm grow room or to cover wider areas. In addition, thanks to this very complete device you’ll be able to set the potency with the dimmable control depending on the stage or needs of your plants, being able to obtain very generous yields.

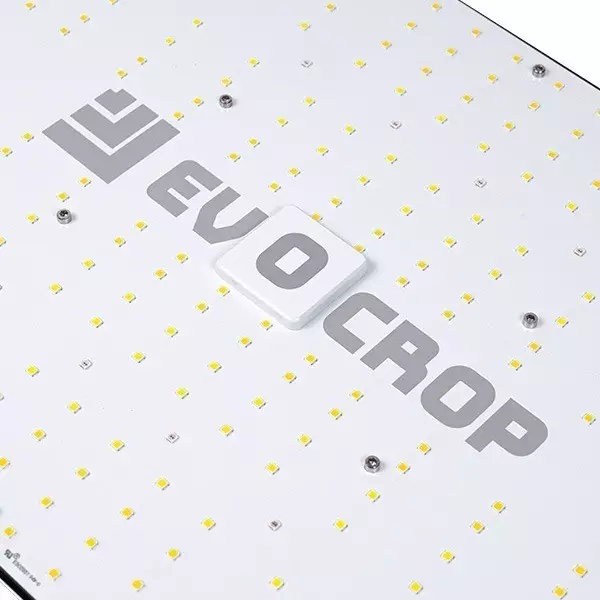

On the other hand, the full spectrum and Samsung LM301H diodes provide the ideal color temperature and energy efficiency for both growing and flowering. Lastly, the included RJ11 cable will also allow you to connect up to 160 diodes at the same time, and to control them from another (not included) device.

Installation

This LED panel comes fully assembled so we only have to follow these steps to install it:

1. Place the panel flat on a surface.

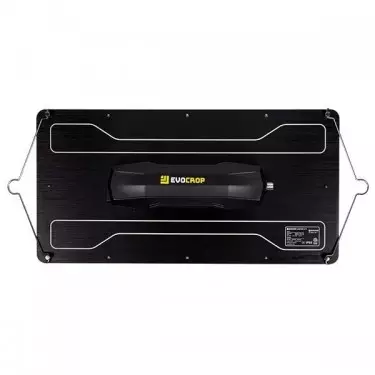

2. Hang the LED system from the ceiling of the grow room or from a sturdy structure.
3. Connect the power cord to the driver and to the outlet.

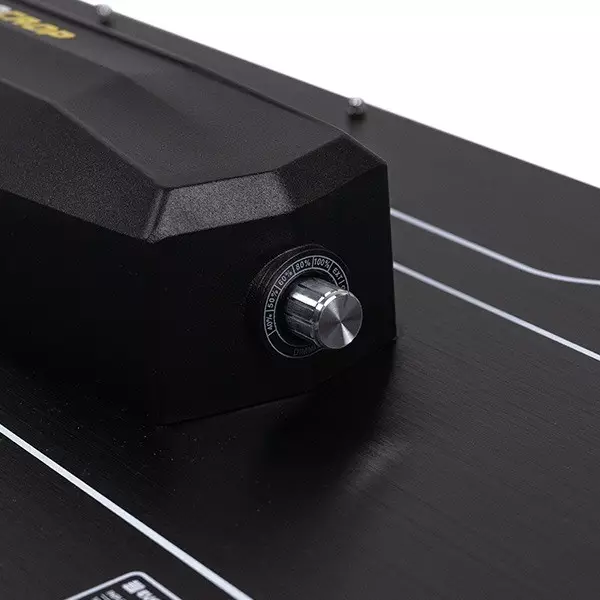

4. To properly regulate the potency, you’ll need to connect the system to the RJ11 cable to an external controller (not included).

Recommendations and warnings

Handling: install the panel in an area with a proper airflow. Do not cover the device with objects that may obstruct the ventilation slots.

Indoors use only: this device is not waterproof. Keep it away from dampness, protected from drip or spray. Do not expose the panel to physical damage such as extreme weather conditions. The working temperature should range between -20 ºC and 40 ºC (-4 º F to -104 ºF).

Repair: if you have any problem with the panel, please contact the manufacturer.

Cleaning: when cleaning the external unit and its components, turn it off first and unplug the power cord. Dampen a clean, soft, fiber-free cloth to clean the panel. Prevent moisture from entering any openings.

Warning: this grow LED panel may damage your eyes. Avoid looking directly when the panel is on. Use safety glasses that block the light to protect your eyes instead.

Technical data

• Light source: Samsung LM301H
• Spectrum: full spectrum; 380 nm - 780 nm, rich 660 nm
• Energy efficiency: 2.5umol/J

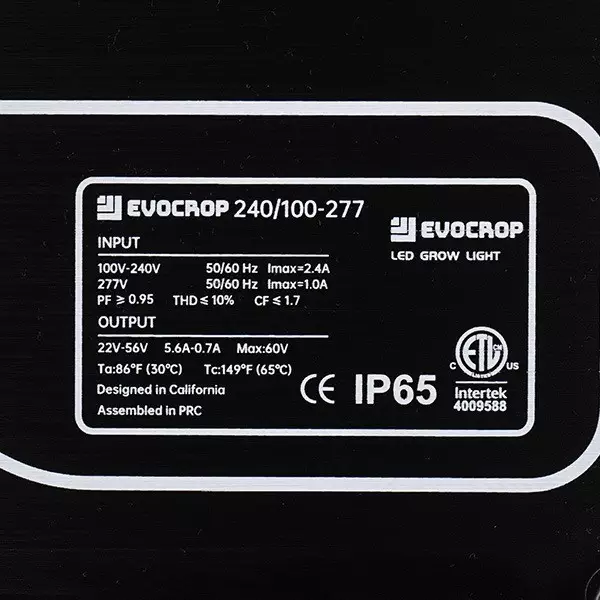

• Input power: 240W/100-277V
• Frequency: 50-60HZ
• Dimensions: 59.7 cm  x 30 cm x 11.5 cm (23.5 x 11.8 x 4.5 in)
• Weight: 4.1 kg (9.03 lbs)
• Ranges: 40 % / 50 % / 60 % / 80 % / 100 % / EXT / OFF
• Lifespan: >54.000 horas
• Power factor: >92%
• Certificates: ETL / C / IP65

Box contents

• 1x Wallace V1 EVO 240W Dimmable LED Panel

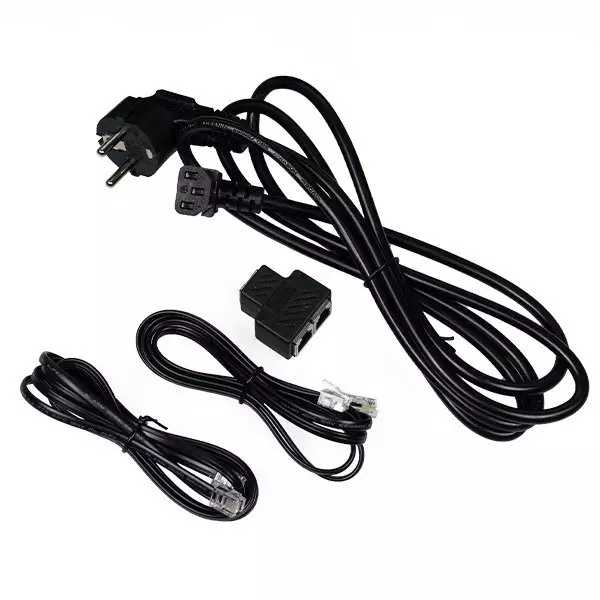

• 1x Power Cord
• 2x 1.5 m (5 ft) Cable
• 1x RJ11 Cable Triple Adapter
• 1x User’s guide.
